What Connects Points Of Equal Elevation On A Map?
What connect points of equal elevation on a topographic map?

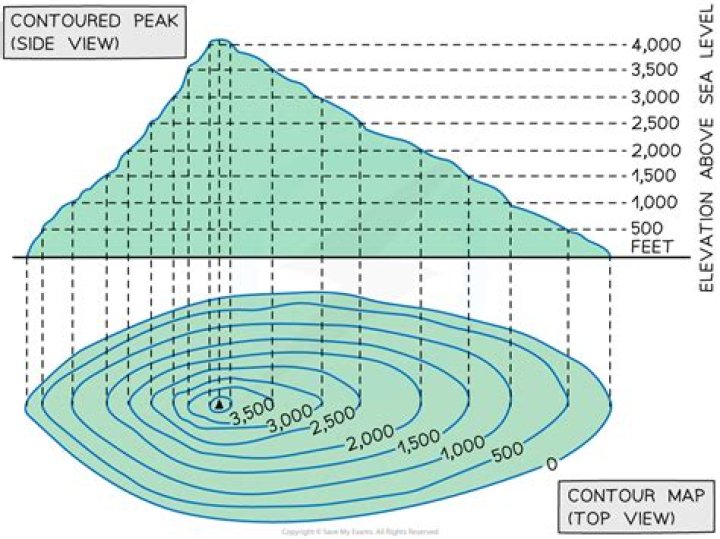

Contours are imag- inary lines that join points of equal elevation on the surface of the land above or below a reference surface, such as mean sea level. Contours make it possible to measure the height of mountains, depths of the ocean bottom, and steep- ness of slopes. A topographic map shows more than contours.
Does a contour line connects points of equal elevation?
A contour line connects points of equal height above sea level, called elevation. For example, a 600′ (six hundred foot) contour line on a map means that every point on that contour line is 600′ above sea level.
What is a map with elevation called?
The distinctive characteristic of a topographic map is the use of elevation contour lines to show the shape of the Earth’s surface. … Each topographic map has a unique name.
What type of isoline shows elevation?
A contour line is a type of isoline; in this case, a line of equal elevation. If you walk along a contour line you will not go uphill or downhill. Mathematically, a contour line is a curve in two dimensions on which the value of a function f(x, y) is a constant.
How do you find the difference in elevation on a topographic map?
You can figure out the elevation of any point by finding the nearest labeled line, counting the number of lines above or below it, multiplying by the contour interval, and adding or subtracting the result from the nearest marked contour line. The more closely spaced the contour lines, the steeper the slope.Which of the following line connects the places of equal height?
In cartography, a contour line (often just called a “contour”) joins points of equal elevation (height) above a given level, such as mean sea level.
Do contour lines cross each other?
Rule 1 – every point of a contour line has the same elevation. Rule 2 – contour lines separate uphill from downhill. Rule 3 – contour lines do not touch or cross each other except at a cliff.
Why do contour lines never cross on a topographic map?
Contour lines never cross.
They may come very close to each other (e.g. along a cliff), but by definition they may never cross each other. * This is because one location on the surface of Earth cannot be at two different elevations!
How do you make an elevation map?
Draw a horizontal line on the graph paper that is the length of your profile line. Draw vertical lines above your starting and ending points. Label the y-axis (vertical lines) with elevations making sure that your scale goes from highest to lowest on your cross-section (see step 3).Is elevation part of topography?
Elevation – The elevation, or height, of mountains and other objects is recorded as part of topography. It is usually recorded in reference to sea level (the surface of the ocean).How is height shown on a topographic map?
What are contour lines? Contour lines connect a series of points of equal elevation and are used to illustrate relief on a map. They show the height of ground above mean sea level (MSL) either in metres or feet, and can be drawn at any desired interval.
What is the name of Isolines that connect points of equal elevation?
contour line
In cartography, a contour line (often just called a “contour”) joins points of equal elevation (height) above a given level, such as mean sea level.
What type of map shows different elevations?
topographic maps
Maps that show elevations are called topographic maps. Elevation influences climate, as well as where and how people live. Most of the worlds people live on coastal plains at elevations of 150 meters (500 feet) or less.What connects locations of equal pressure?
Isobars
A line drawn on a weather map connecting points of equal pressure is called an “isobar”. Isobars are generated from mean sea-level pressure reports and are given in millibars.
How do I find the difference in elevation?
To determine the difference in elevation between two points, determine the elevation at each point and then calculate the difference. Record your answer in feet. In the example below, point A is at 1220 ft. and point B is at 1800 ft.What is an elevation difference?
The vertical distance between two points is called the difference in elevation , which is similar to what you have learned as the difference in height (see Section 5.0). The process of measuring differences in elevation is called levelling , and is a basic operation in topographical surveys.What is elevation change on a topographic map?
An important feature of topographic maps is the use of contour lines to note elevation. A contour line connects points of similar elevation. … Supplementary contour lines appear at half the elevation interval of an intermediate contour line and are used in areas where there is gradual change in elevation.
Which of the following line connects the places of equal temperature?
c) Isotherms are lines drawn on a map joining points with the same temperature. They are generally used in meteorology to show the ratio of temperature at the Earth’s surface or on a chart demonstrating steady level or steady pressure.
Who connects places of equal temperature?
The correct answer is option 1, i.e. Isotherms. Isotherms are lines on a weather map which connects points of equal temperature.What are lines that connect points of equal value called?
A contour line or isoline connects points on a map that are of equal value. Examples of contour lines or isolines are isobars (pressure) and isotherms (temperature). Perhaps the prototypical example of a contour line is that which connects points of equal elevation (that is, height above sea level).
Why can’t two contour lines overlap?
Contour lines never cross on a topographic map because each line represents the same elevation level of the land.
Can contour lines ever overlap?
Contour lines also never touch or overlap, unless certain rare instances occur, such as if there is a vertical or overhanging cliff. In the case of a vertical cliff, the contour lines will appear to merge.
What is every 5th contour line called?
index contour
To make topographic maps easier to read, every fifth contour line is an index contour. The index contour lines are the only ones labeled. The index contours are a darker or wider line in comparison to the regular contour lines. Elevations are marked on the index contour lines only.What does an elevation contour line represent?
Contour lines are lines drawn on a map connecting points of equal elevation, meaning if you physically followed a contour line, elevation would remain constant. Contour lines show elevation and the shape of the terrain. They’re useful because they illustrate the shape of the land surface — its topography — on the map.How are contour lines drawn on maps?
Contour lines are lines drawn on a map with equal elevation points, so elevation would be constant if you followed the contour line physically. The elevation and terrain shape of the contour lines shows. It is useful because they show the form of the land surface on the map–its topography.What does AV shaped contour line mean?
V-shaped contour lines indicate valleys, ravines, or gullies. Closely-spaced contour lines depict steep slopes. More widely- spaced contour lines indicate gradual slopes.
How do I create an elevation map in ArcGIS?
Add a custom elevation surface
- In the Contents pane of a scene, right-click Elevation Surfaces, and click Add Elevation Surface. …
- Right-click the new surface and choose Add Elevation Source .
- Browse to a valid elevation source on your file system or on ArcGIS Online.
How are topographic maps made?
Historically, USGS topographic maps were made using data from primary sources including direct field observations. Those maps were compiled, drawn, and edited by hand. … Thanks to automated production, US Topos have a rapid national refresh cycle (3 years), as opposed to 45 years for the historical 7.5-minute map series.
How do you get topographic maps?
The online USGS Store is the only site for ordering paper topographic maps.
…
How do I find, download, or order topographic maps?
- Map Locator on the USGS Store — Search and download free digital maps in GeoPDF format or order paper maps. …
- TopoView — The largest selection of digital options.
What is the elevation of a location?
The elevation of a geographic location is its height above or below a fixed reference point, most commonly a reference geoid, a mathematical model of the Earth’s sea level as an equipotential gravitational surface (see Geodetic datum § Vertical datum).What is the name for the elevation difference between two adjacent contour lines?
The elevation difference between two adjacent contour lines is called the contour interval (CI). Usually the contour interval is noted on the map legend. In most topographic maps every 5th contour line is drawn in bold print or wider than other contours. Such lines are called index contour lines.
What is elevation of property?
However, in real estate, the term ground elevation is usually used to find out the height of a structure starting from the ground. For example, the architectural drawing of a house features exterior elevation, which suggests dimensions for exterior walls, the way they are faced and materials used.
What are 3 ways to show height on a map?
