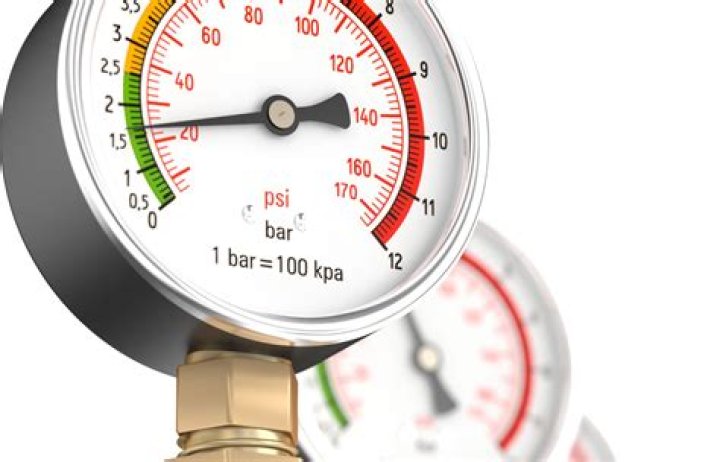

What Do We Use To Measure Air Pressure?
A barometer is a scientific instrument used to measure atmospheric pressure, also called barometric pressure. … Barometers measure this pressure.
How do you measure air pressure?
Atmospheric pressure is commonly measured with a barometer. In a barometer, a column of mercury in a glass tube rises or falls as the weight of the atmosphere changes. … One atmosphere is 1,013 millibars, or 760 millimeters (29.92 inches) of mercury. Atmospheric pressure drops as altitude increases.What are 2 instruments that measure air pressure?
Mercury and aneroid barometers are the two main types of barometers used to measure air pressure.
What can we use to measure air?
barometers
An instrument that measures air pressure is called a barometer. One of the first barometers was developed in the 1600s. The original instrument had mercury in the small basin, with an upside down glass tube placed in the mercury. As air pressure increased, the pressure would force more mercury in the tube.What is manometer used to measure?
A manometer is used to measure the pressure of liquids or gases. … This type of pressure measuring tool typically is used to measure relative pressure or absolute pressure. Relative pressure references external air pressure or atmospheric pressure.
How do you measure air pressure in your home?
What instruments and units are used to measure air pressure?
To measure the air pressure, the two instruments that are commonly used include mercury barometers and aneroid barometers. A mercury barometer consists of a glass tube that is partially filled with mercury and air. On the other hand, aneroid barometers are air-sensitive metal chambers, which are usually airtight.
What tools measure barometric pressure?
A: A barometer is a scientific instrument used in meteorology to measure atmospheric pressure. A simple barometer consists of a long glass tube (closed at one end, open at the other) filled with mercury and turned upside down into a container of mercury.
What tools or instruments are activated by air pressure?
pneumatic tool (nŏŏmăt´Ĭk), instrument activated by air pressure. Pneumatic tools are designed around three basic devices: the air cylinder, the vane motor, and the sprayer.
What are two different ways to measure air pressure?
A barometer is the most common instrument used to measure air pressure, and it comes in two forms: aneroid and mercury.
How is wind pressure measured?
(Air pressure itself is measured by an instrument called a barometer.) A tube anemometer uses air pressure to determine the wind pressure, or speed. A tube anemometer measures the air pressure inside a glass tube that is closed at one end.How is a manometer used to measure gas pressure?
A manometer is a device that measures air pressure using a container with a “U”-shaped tube open at one or both ends. In a closed manometer, a sample of gas is introduced into one end, which is then capped. … This pressure represents the positive or negative difference between the gas pressure and atmospheric pressure.
How a manometer is used to measure pressure?
In its simplest form the manometer is a U-tube about half filled with liquid. … When positive pressure is applied to one leg, the liquid is forced down in that leg and up in the other. The difference in height, “h,” which is the sum of the readings above and below zero, indicates the pressure.Is manometer used to measure atmospheric pressure?
The most common form of a sealed-tube manometer is the conventional mercury barometer used to measure atmospheric pressure. A manometer can be designed to directly measure absolute pressure. The manometer in Figure 5 measures the pressure compared to zero absolute pressure in a sealed leg above a mercury column.How do you measure room pressure?
How is pressure difference measured?
Differential pressure can be measured by gauges containing two different Bourdon tubes, with connecting linkages. Bourdon tubes measure gauge pressure, relative to ambient atmospheric pressure, as opposed to absolute pressure; vacuum is sensed as a reverse motion.What is barometric pressure used for?
Atmospheric pressure is an indicator of weather. Changes in the atmosphere, including changes in air pressure, affect the weather. Meteorologists use barometers to predict short-term changes in the weather.
What are the three different ways to measure air pressure?
This image shows three common ways that atmospheric pressure is measured – using a mercurial barometer, an aneroid barometer or a barograph.How do we measure wind?
The instruments used to measure wind are known as anemometers and can record wind speed, direction and the strength of gusts. The normal unit of wind speed is the knot (nautical mile per hour = 0.51 m sec-1 = 1.15 mph).What is the wind pressure?
(Also called velocity pressure.) The total force exerted upon a structure by wind. For a flat surface it consists of two factors, the first being the dynamic pressure exerted on the windward side of the surface (wind load).
Which instrument is used to measure wind direction?
The wind vane is another weather instrument. This instrument is used to measure the direction of the wind. A wind vane can be made from a variety of materials, but should be heavy enough to withstand strong winds.How is natural gas pressure measured?
How do you measure the gas pressure? You will need an instrument called a Manometer. This tool allows you to measure the pressure of gas in the system. Manometers are available that measures a specific range of pressure in inches of water column or pounds per square inch.
What is a manometer used for in HVAC?
A manometer is an instrument used to measure and indicate pressure. … Inches of water column is the most common form of measurement in the HVAC industry when measuring static or gas pressure, although other units of measure are available and used worldwide. One of the most common analog types is the Magnehelic® gauge.When and manometer is used for measuring?
Explanation: Manometers are devices in which columns of a suitable liquid are used to measure the difference in pressure between two points or between a certain point and the atmosphere. A manometer is needed for measuring large gauge pressures.What is used to measure the pressure in the pipe and channels?
Solution(By Examveda Team)
Manometers are devices in which columns of a suitable liquid are used to measure the difference in pressure between two points or between a certain point and the atmosphere. The manometer is needed for measuring large gauge pressures.
Why mercury is used in manometer?
Mercury is a useful material to use in a manometer because of its high density. This means that a much shorter column is needed compared to water. For instance, the pressure represented by a column of 100 mm of water is just under 7.4 mm of mercury (mmHg).
Why do we measure pressure?
Across various industries, measuring the pressure of a substance is an important part of the manufacturing process. Obtaining accurate and meaningful data is important in determining the quality and consistency of the product.
How do you measure negative air pressure in a room?
To test the pressure inside an acute negative pressure room, a smoke or tissue test can be performed. To carry out these tests, a smoke capsule or tissue is placed at the bottom of the negative pressure room door. If the smoke or tissue is pulled underneath the door, the room can be seen to be negatively pressurized.How do you change the air pressure in a room?
Cool the home by running the air conditioner, opening windows on a cool day or using ceiling fans. Cool air sinks, suppressing air molecules and increasing air pressure. Warmer air rises, lowering air pressure.
What are the types of pressure measurement?
The three methods for measuring pressure are absolute, gauge, and differential. Absolute pressure is referenced to the pressure in a vacuum, whereas gauge and differential pressures are referenced to another pressure such as the ambient atmospheric pressure or pressure in an adjacent vessel.Is used to measure pressure directly?
Bourdon tube pressure gauges are the most common type in many areas and are used to measure medium to high pressures. … The measuring element is a curved tube with a circular, spiral or coiled shape, commonly called a bourdon tube.
What does a pressure gauge measure?
pressure gauge, instrument for measuring the condition of a fluid (liquid or gas) that is specified by the force that the fluid would exert, when at rest, on a unit area, such as pounds per square inch or newtons per square centimetre.How is barometric pressure measured?
A mercury barometer is an instrument used to measure atmospheric pressure in a certain location and has a vertical glass tube closed at the top sitting in an open mercury-filled basin at the bottom. Mercury in the tube adjusts until the weight of it balances the atmospheric force exerted on the reservoir.
How does a barometer measure air pressure?
The barometer works by balancing the weight of mercury in the glass tube against the atmospheric pressure, much like a set of scales. … Once the two have stopped moving and are balanced, the pressure is recorded by “reading” the value at the mercury’s height in the vertical column.How do you use barometric pressure?
How do you make a wind measuring device?
What is a scale used to measure wind speed?
The Beaufort Scale
