What Frequency Does Gps Use?
1575.42 MHz
Is GPS a radio frequency?
GPS receivers use radio waves to determine positional coordinates. The radio waves are emitted by a constellation of orbiting satellites, which function as a reference system for GPS.
Does GPS use L-band?

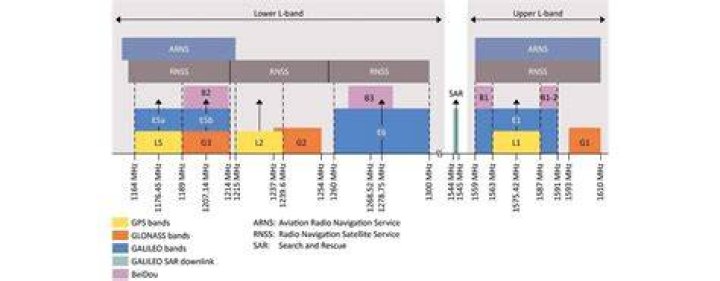

All GPS signals are in the L-band of the frequency spectrum (Fig. A2-1). Because L-band waves penetrate clouds, fog, rain, storms, and vegetation, GPS units can receive accurate data in all weather conditions, day or night.
What are the two main carrier frequencies of GPS?
The GPS satellites transmit signals on two carrier frequencies. The L1 carrier is 1575.42 MHz and carries both the status message and a pseudo-random code for timing. The L2 carrier is 1227.60 MHz and is used for the more precise military pseudo-random code.
What is GPS L5 frequency?
L5 is the third civilian GPS signal, designed to meet demanding requirements for safety-of-life transportation and other high-performance applications. Its name refers to the U.S. designation for the radio frequency used by the signal (1176 MHz).
What is the GPS civilians frequency band?
1575.42 MHz
L1C is a civilian-use signal, to be broadcast on the L1 frequency (1575.42 MHz), which contains the C/A signal used by all current GPS users.What frequency is Glonass?
1602 MHz
Traditionally, GLONASS satellites transmit navigational radio signals on two frequency sub-bands (L1 ~ 1602 MHz and L2 ~ 1246 MHz), relying on the Frequency Division Multiple Access (FDMA) technique in contrast to CDMA employed by all the other GNSS systems.May 21, 2021
What is Ka band frequency?
26.5–40 GHz
The Ka band (“kay-ay band”) covers the frequencies of 26.5–40 GHz, i.e. wavelengths from slightly over one centimeter down to 7.5 milimeters. The Ka band is part of the K band of the microwave band of the electromagnetic spectrum.What is GPS L1 and L2 frequency?
1575.42 MHz
All GPS satellites broadcast on at least two carrier frequencies: L1, at 1575.42 MHz, and L2, at 1227.6 MHz (newer satellites also broadcast on L5 at 1176 MHz).What are Ku and Ka bands?
Ku-band uses frequencies in the 12 to 18 GHz range, while Ka-band uses frequencies in the 26.5 to 40 GHz range. With a higher frequency, you can extract more bandwidth from a Ka-band system, which means a higher data transfer rate and, therefore, higher performance.
What signal does GPS use?
Signals. Each GPS satellite transmits data on two frequencies, L1 (1575.42 Mhz) and L2 (1227.60 MHz). The atomic clocks aboard the satellite produces the fundamental L-band frequency, 10.23 Mhz. The L1and L2 carrier frequencies are generated by multiplying the fundamental frequency by 154 and 120, respectively.
What is L band used for?
L band waves are used for GPS units because they are able to penetrate clouds, fog, rain, storms, and vegetation. Only dense environments such as heavy forest canopies or concrete buildings can cause GPS units to receive data inaccurately.
Is 200H a GPS?
IS-GPS-200H, GLOBAL POSITIONING SYSTEMS DIRECTORATE SYSTEMS ENGINEERING & INTEGRATION: INTERFACE SPECIFICATION IS-GPS-200 – NAVSTAR GPS SPACE SEGMENT/NAVIGATION USER INTERFACES (24-SEP-2013)., Interface Specification IS-GPS-200 defines the requirements related to the interface between the GPS space and user segments …
How strong is GPS signal?
The typical power level of the GPS signal is -125 dBm.
Can GPS transmit data?
GPS receivers do not transmit any information they are built for receiving information. The encompassing device then uses said information depending on what the device was built for. You would be hard pressed to find a ‘regular device’ on the market which transmits data back to ‘the satellites’.
What is l1 and l5 GPS?
GPS signals include ranging signals, used to measure the distance to the satellite, and navigation messages. … The navigation messages include ephemeris data, used to calculate the position of the satellite in orbit, and information about the time and status of the satellite constellation.
What is the 4G frequency band?
3G Vs 4G
| 3G | 4G | |
|---|---|---|
| Frequency Band | 1.8 – 2.5 GHz | 2 – 8 GHz |
| Bandwidth | 5-20 MHz | 5-20 MHz |
| Data rate | Up to 2Mbps ( 384 kbps WAN) | Up to 20 Mbps or more |
| Access | Wideband CDMA | Multi-carrier – CDMA or OFDM(TDMA) |
Can GPS be jammed?
GPS jamming is the process of using a frequency transmitting device to block or interfere with radio communications. Types of communications that can be jammed include phone calls, text messages, GPS systems and Wi-Fi networks. … A jamming violation could result in expensive fines, seizure of the device and jail time.
How close can GPS pinpoint?
GPS satellites broadcast their signals in space with a certain accuracy, but what you receive depends on additional factors, including satellite geometry, signal blockage, atmospheric conditions, and receiver design features/quality. For example, GPS-enabled smartphones are typically accurate to within a 4.9 m (16 ft.)Which is better GPS GLONASS or Galileo?
GLONASS is generally more precise in mountainous regions, while Galileo offers better accuracy in urban environments. When you combine either of these two systems with GPS, your receiver will usually be dead on about your location.
What signal does GLONASS provides to civilian?
GLONASS is a global navigation satellite system, providing real time position and velocity determination for military and civilian users.Is GLONASS more accurate than GPS?
As far as positional accuracy is concerned, GPS is better than GLONASS marginally. The positioning of the GLONASS satellites is different, which is why the system works better at high latitudes. … The orbital height, in case of GLONASS satellites is 21150 km, while for GPS, it’s around 19130 km.
What frequency do satellites use?
An AM radio operates at a frequency between 535-1605 kilohertz (kHz), so a station at 800 kHz has waves cycling 800,000 times per second. A signal from a Ka-band satellite operates at a much higher frequency of around 28 gigahertz (GHz), 28,000,000,000 times per second.What are the 5G frequency bands?
The frequency bands for 5G networks come in two sets. Frequency range 1 (FR1) is from 450 MHz to 6 GHz, which includes the LTE frequency range. Frequency range 2 (FR2) is from 24.25 GHz to 52.6 GHz. The sub-6 GHz range is the name for FR1 and the mmWave spectrum is the name for FR2.
What band is 40 GHz?
The Ka band (pronounced as either “kay-ay band” or “ka band”) is a portion of the microwave part of the electromagnetic spectrum defined as frequencies in the range 26.5–40 gigahertz (GHz), i.e. wavelengths from slightly over one centimeter down to 7.5 millimeters.
What is the number of GPS satellite used?
The GPS satellite network consists of 32 satellites in total, with 24 being active at any one time. 24 satellites are required to ensure that at a position fix can be obtained by any user, at any point on earth, at any given time.
What are GPS channels?
A channel in a continuous tracking GPS receiver is not unlike a channel in a television set. It is hardware, or a combination of hardware and software, designed to separate one signal from all the others. A receiver may have 6 channels, 12 channels, or hundreds of channels.What are GPS observables?
Abstract. The basic GPS observables are code pseudoranges and carrier phases as well as Doppler measurements. The principle of the GPS measurements and their mathematical expressions are described.
What is the standard frequency range for Ku band?
12 to 18 GHz
The Ku-Band as defined by IEEE is a frequency range from 12 to 18 GHz. IEEE uses letters to signify a range of frequencies from 1 to 170 GHz. The Ku-band is mostly used for satellite TV and for VSAT systems on ships.What does S band stand for?
The S band is a designation by the Institute of Electrical and Electronics Engineers (IEEE) for a part of the microwave band of the electromagnetic spectrum covering frequencies from 2 to 4 gigahertz (GHz). Thus it crosses the conventional boundary between the UHF and SHF bands at 3.0 GHz.
What band does VSAT 1st operate?
The first commercial VSATs were C band (6 GHz) receive-only systems by Equatorial Communications using spread spectrum technology. More than 30,000 60 cm antenna systems were sold in the early 1980s.What data do GPS use?
GPS in smartphone uses mobile internet data if you don’t have maps downloaded on smartphone. Google maps has offline maps feature save mobile data. Global Positioning Service – GPS is provided free of cost by satellite everywhere. Data will be used to get maps on the go with T Mobile, Verizon, At&T, Airtel, Vodafone.
